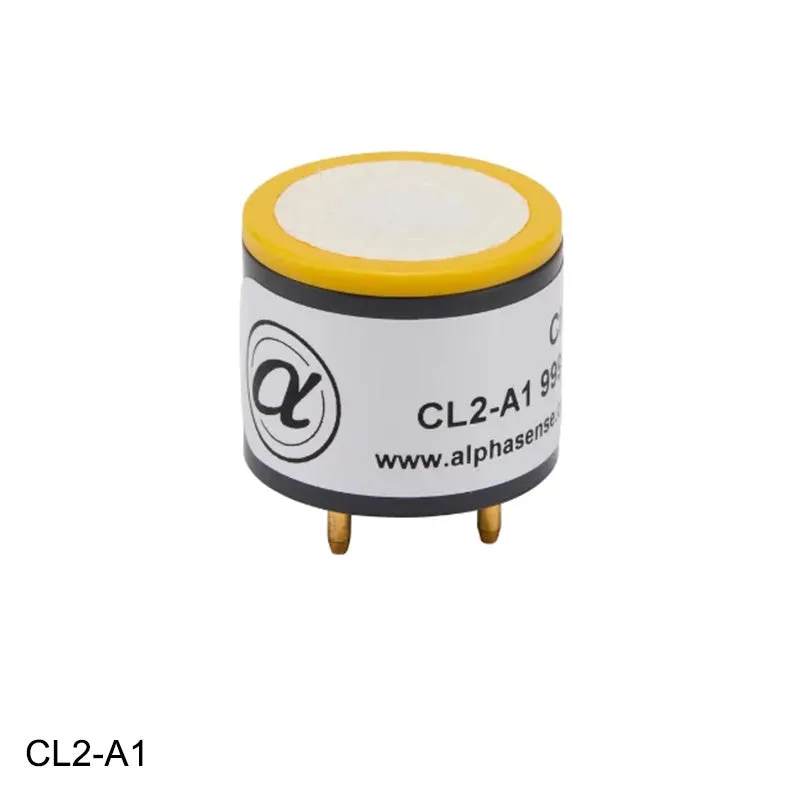

The CL2-A1 Alphasense Chlorine Gas Sensor is a 20mm diameter sensor, designed to monitor CL2 concentrations to prevent injury to those working around the gases presence. CL2 sensors are available in a wide range of formats and are suitable for use in both fixed and portable gas detection.
The CL2 range provides OEMs with reliable sensing for use in a number of high volume applications. Strong signal levels combined with low zero current allows resolution to 20ppb and an operating range from 0 to 20ppm.
Chlorine gas sensors are also commonly used due to their electrolyte leak-free guarantee and reliable long-term detection performance. The leakproof housing is molded with a color coded top for ease of identification.
Features
- Accurate, Quality EC sensor
- Low Cross-Sensitivity across multiple gases
- Easy to use and integrate into portable or fixed gas detectors
- Used in water, treatment, industrial, wastewater, and many other applications
- No external power required, low maintenance
- Proven and trusted design - 90 day warranty
Specifications
- Sensitivity: nA/ppm in 10ppm CL2 -350 to -750
- Response time: t90 (s) from zero to 10ppm CL2 ((33Ω load resistor) <60
- Zero current: ppm equivalent in zero air < ±0.4
- Range: ppm limit of performance warranty 20
- Linearity: ppm error at full scale, linear at zero and 5ppm CL2 ±1.5
- Overgas limit: maximum ppm for stable response to gas pulse 50
- Zero drift: ppm equivalent change/year in lab air, monthly test <0.05
- Sensitivity drift: % change/year in lab air, monthly test < 10
- Operating life: months until 80% original signal (24 month warranted) > 24
- Sensitivity@ -20°C % (output@ -20°C/output@ 20°C) @10ppm CL2 65 to 85
- Sensitivity@ 50°C % (output@ 50°C/output@ 20°c) @10ppm CL2 105 to 125
- Zero@ -20°C ppm equivalent change from 20°c | <±0.2
- Zero@ 50°C ppm equivalent change from 20°c | < 0 to -0.8
- Temperature range °C: -20 to 50
- Pressure range kPa: 80 to 120
- Humidity range %RH continuous 15 to 90
- Storage period months: @ 3 to 20°c (stored in sealed pot) 6
- Load resistor: olms (recommended) 33
- Weight grams: < 6
- H2S sensitivity % measured gas@ 20ppm H2S < -300
- H2 sensitivity % measured gas@ 400ppm H2 < 0.1
- NO2 sensitivity % measured gas@ 10ppm NO2 100
- NO sensitivity % measured gas@ 50ppm NO < 3
- SO2 sensitivity % measured gas@ 20ppm SO2 < -8
- C2H4 sensitivity % measured gas@ 400ppm C2H4 < 0.1
Warranty
- 90 Days - See CO2Meter Terms and Conditions
Tube cap adapters easily convert 20mm standard gas sensors from diffusion to sampling sensors. Molded polymer grips sensor for easy fit and removal while maintaining a good seal.
includes all the tools you need to urilize the tube-cap adapters as part of a sampling sensor system.
is a highly selective, semi-permeable membrane to water vapor. If gases inside Nafion tubing are wetter than gases surrounding the tubing, drying will occur. If the surrounding gases are wetter, humidification will occur.
provide a constant flow of air across the sensor with a tube cap - perfect for bench-top testing of sensors for closed-loop sampling applications.
Sensor Pin Sockets - Manufacturers do not recommend soldering to the pins. Pin sockets can be purchased from Andon distributors. . Select the brand PDF, find your sensor, then search for the Andon part number for your sensor's socket.
