The LuminOX LOX-02 Oxygen sensor measures ambient oxygen levels using the principle of florescence quenching by oxygen. This provides the benefits of durability, immunity to cross-sensitivity to other gases, and a longer lifespan than typical electrochemical oxygen sensors as the UV sensor decay clock only runs when measuring the oxygen level.
Features
- LuminOX sensor provides low drift, low cross-sensitivity
- MX Board includes barometric pressure, temperature and % relative humidity sensors
- MX Board allows for easy sensor calibration
- MX Board adds serial UART output
- Easy integration; compact & low power
The CM-42951 Development Kit combines the LOX-02 sensor with barometric pressure, temperature and % relative humidity sensors on board and data logging using our .
Combined with MX board, the LOX-02 provides accurate oxygen measurement over a wide environmental range without the need for additional system components.
Models

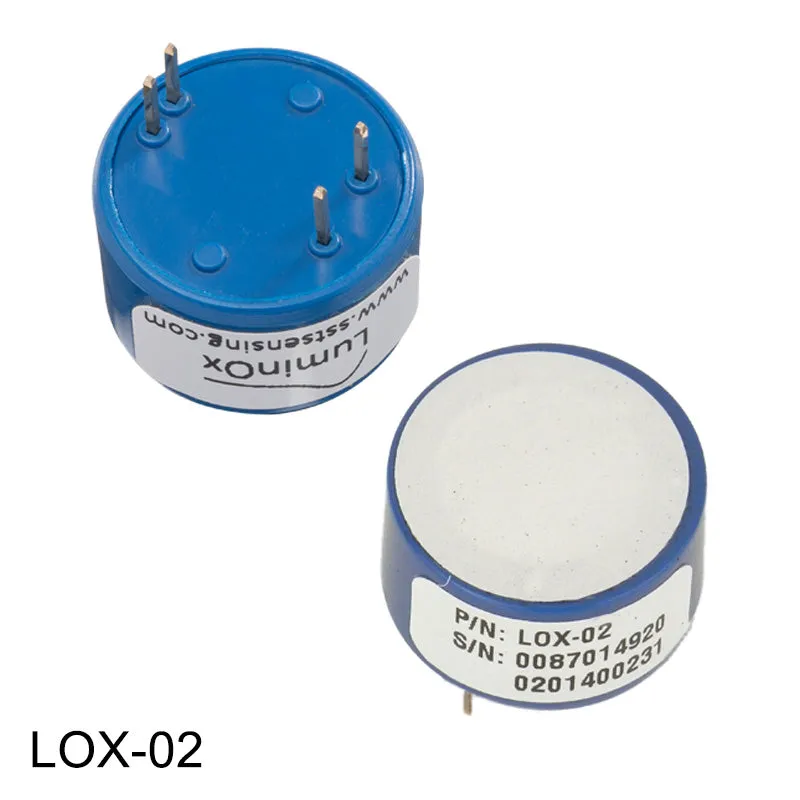

- LOX-O2 Sensor – for integration into high-volume OEM products.

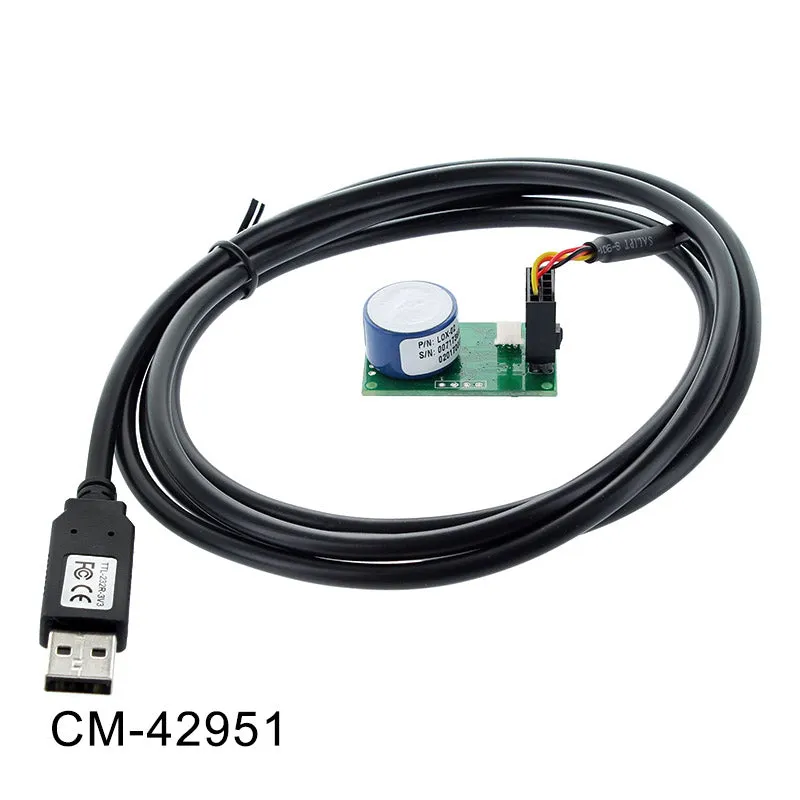

- CM-42951 Development Kit – Easy to use, simply plug the MX Board into your PC via the included Serial UART to USB cable. Use our free GasLab® software to measure and graph ambient air oxygen, barometric pressure, temperature, and % relative humidity. Includes on-board memory for data logging.

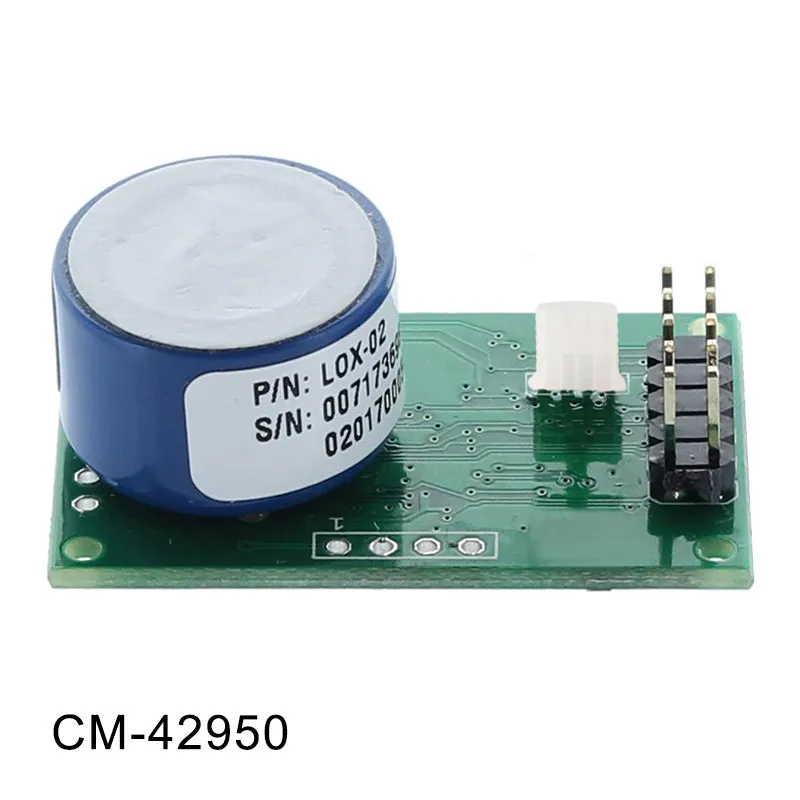

- CM-42950 MX Board – Same functionality as the development kit without USB cable or software.
Specifications
- Measuring Gas: Oxygen
- Measurement Range: 0 to 25% O2
- Sensing Method: Fluorescence quenching by oxygen
- Measurement Interval: 1 Sample/second
- Response Time: < 60 Seconds
- Warm-Up Time: < 60 Seconds at 72°F (22°C)
- Accuracy: < 2% at full scale
- Resolution: 0.01%
- Temperature Accuracy: /- 2 degrees C
- Operating Temperature: -30°C to 60°C
- Barometric Pressure Range: 500 to 1200 mbar
- Lifetime: > 5 years
Electrical / Mechanical
- Voltage: 4.5 - 5.5 VDC
- Current: < 6mA (streaming @ 1 Sample/sec), < 17mA Peak
- Interface: UART or analog
MX Connector: MOLEX 0901420010 0901190109
Warranty
- 90 Days - See GasLab Terms and Conditions
Documents
Free Easy-to-use GasLab® Software
This device uses GasLab® software for setup, calibration, data logging, and real-time data analysis. GasLab® makes it easy to export data into a .CSV file that can be imported into any industry-standard software or spreadsheet. GasLab® runs on Windows XP or higher, and free to use with our products.
System Requirements for Data Logging or Changing Defaults
- Windows XP SP2 or newer
- Microsoft .Net 3.5 Runtime Libraries
